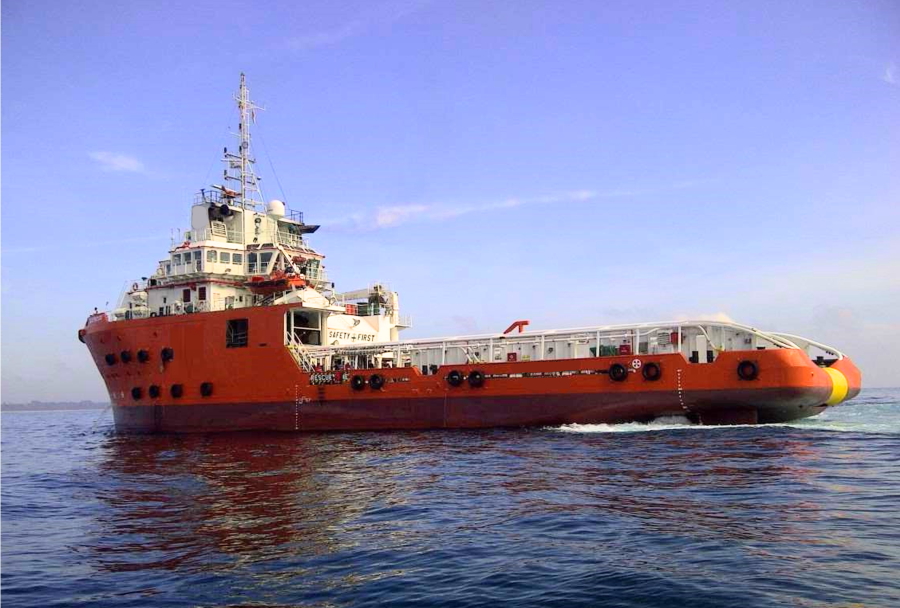

142t Bollard Pull DP2 AHTS for Sale

Class ABS
Class Notation ABS A1(E), Offshore Support
Towing & Fire Fighting Class1 AH
+ AMS, ACCU DP2
10,872 HP
420 SQM Deck Space
142 T Bollard Pull FRC
Place of Build Batam, Indonesia
Year 2009
Flag Singapore

Main Particulars

Dimensions
LOA 67 m
Breadth 16 m
Depth 7 m
Max Draft 6m

Propulsion and Machinery

BHP 10,870 hp
Main Engines 2
Main Engines: Make / Type Wartsila 8L32
Propellers CPP w prop in AHT nozzle

Thruster

Bow 2 x 8 t , CPP Elec Driven
Stern 8 t , CPP Elec Driven
Azimuth n/a

Auxiliary Engines

Shaft Generators 2×1520 ekW 450V/3ph/60Hz
Diesel Generator 2x 590kw 450V/3ph/60Hz
Emergency Generators 1 x 84 ekW, 440V/3ph/60Hz
Supply System – Voltage 440V / 220V

Performance

Max Speed 13.5 knots @ 30 t/day (aprx)
Economical Speed 12 knots @ 20 t/day (aprx)
Bollard Pull 142 t

Capacities

Deadweight Aprx 2,000 t (max draft)
Gross Tonnage 2,310 t
Deck Cargo Aprx 800 t
Cargo Deck Dim. 35m x12m
Deck Area 420 m2
Deck Strength 5 t / m2
Dry Bulk Capacities 4x 62.5t
Drill / Ballast Water (sg=1) 437 m3
Potable Water 239 m3
Oil Based Mud 398.7 m3
Brine 398.7 m3
Base Oil n/a
Fuel Oil 1,194 m3
Freezer Room 8m3
Cooler Room 8m3

Deck Equipment

Capstans 2 x 10 t @ 14.6 m/min
Tugger Winch 2 x 11 t @ 18.9 m/min
Deck Crane Cargo 2 t @15 m
FRC 1 x Seabear 23 MKII 10 Person
FRC Davit MacGregor 3.2 t

Anchoring Equipment

Windlass 12 t @ 14.5 m/min

Towing and Anchor Handling Winch Capacities

AHT Winch 250 t
Line Pull 150 t
Stall Pull 250 t
Break Capacity 320 t
Towing Drum 1,500 m x 76 mm dia
Anchor Handling Drum 500 m x 76 mm dia
Speed 8.5 m/min
Karm Forks 1 set 300 t (SWL)
Towing Pin 2 x 160 t (BP)
Spare Wire Reel 1,500 m x 76 mm dia
Stern Roller 300 t (SWL) 4m x 2m dia

Discharge

Dry Bulk 2 x 50 t/hr
Fresh Water 1 x 150 m3/hr @ 70 m head
Ballast / Drill Water 1 x 150 m3/hr @ 70 m head
Liquid Mud / Brine 1 x 100 m3/hr@70 m head
Base Oil n/a
Fuel Oil 1 x 150 m3/hr @ 70 m head

Accommodation

Single Berth Cabins 6 x 1
Double Berth Cabins 2 x 2
Four Berth Cabins 8 x 4
Total Accommodation 42 persons
Mess 14 man

Dynamic Positioning System

DP System DP2 – Converteam
References 2x DGPS, Cyscan
