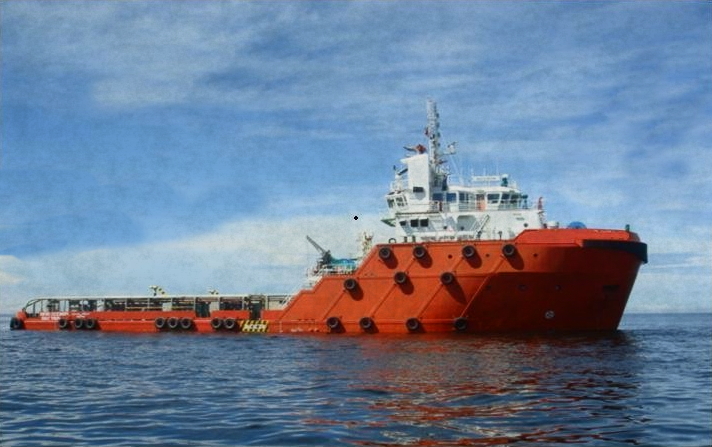

150 T Bollard Pull AHTSSV DP-2 For Sale
MAIN PARTICULARS
150 T Bollard Pull AHTSSV DP-2 Eco-P For Sale
Class: Lloyd’s Register
Class Notation
LRS +100 A1 Fire-Fighting Ship 1 *IWS HNLS, AHTS / Standby Ship
Oil Recovery, ECO P, +PCAC, +NAV 1, Unrestricted Service
+LMC, UMS, DP (AA)
Dimensions
Length O.A. :70m
LBP :61.80 m
Breadth MLD. :19m
Depth MLD. : 7.50m
Max. Draft : 6.20m
SPS Draft : 5.50m
Performance
Speed : 12 knots
Bollard Pull : 150t
Autonomy : 30 Days
Machinery
Main Engines (Hybrid): 2 x 2920kW
Main D G Sets : 4 x 1690kW
Hybrid Motor : 2 x 1600kW
Emergency DG : 1 x 150kW
Propulsion (Hybrid) : 2 x 4520kW
Rudders : 2 x High lift
Bow Thrusters : 2 x 850kW
Stern Thruster : 2 x 500kW
Capacities
Fuel oil : 600m3
Fresh water : 600m3
Mud/Brine Tanks : 700m3
Lube Oil : 10m3
Recovered oil : 700m3
Dry bulk : 250m3
Foam : 20m3
Dispersant : 10m3
Deck Cargo
Deck Area : 570 m2
Supply Vessel Mode : 1000 Ton
Deck Loading : 7.5 t/m2
Accommodation Total : 60 Men
MACHINERY
Deck Machinery
Windlass : 1x Low pressure hydraulic
with double drum, waterfall
type c/w spooling device for
the towing drum.
Capstans : 2 x 10 T @ 15 m3 / min.
AHT Winch : 350t pull @ 0-6 m/min
: 450 t brake holding
: 2 x 1000 m, 60mm cable drums
: 76 mm and 101.6mm dia
cable lifters
Spare rope drums : 2 x 2500m x 76 mm dia
Shark Jaw : 1 x 450 t SWL
Tow Pins : 2 x 225 t SWL
Towing Bollard : 150 t SWL
Stern Roller : 7.0 m long x 2.5 m diameter
Tugger Winches : 2 x 15 t @ 15 m/min
Deck Crane : 5 T SWL @ 20 m radius
Oil Dispersant system with spray arms
Oil recovery System in modules
Rescue Standard
UKOOA ERRV-Group B
