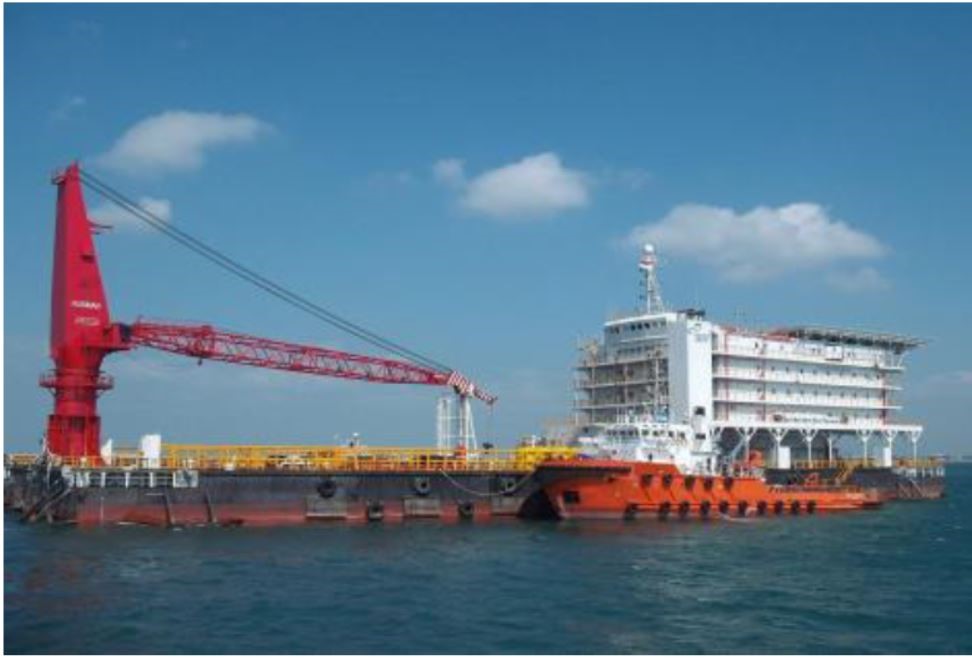

402 PAX ACCOMMODATION WORK BARGE FOR SALE

Built: 2009 – Location: Malaysia

General Particular:

DIMENSION
Length Overall : 111.56 m
Breadth Moulded : 31.70 m
Depth Moulded : 7.31 m
Light Draught : 1.65 m
Loaded Draught : 4.45m
Gross Tonnage : 11063
Nett Tonnage : 3319
Deadweight : 9336 MT

TANK & CARGO CAPACITY
Deck Cargo : 1000 MT
Deck Strength : 12.5 MT/ m²
Clear Deck Area : 1700 m²
Fuel Oil : 1720 m³
Fresh Water : 2970 m³
Sea Water Ballast : 4300 m³
Drill Water : 1050 m3
Freezer : 70 m3
Chiller : 60 m3

MACHINERY
Main Generator : 5 units diesel driven, CAT 3412 DITA 580
kw/440v/3 PH/60 HZ
Emergency : 1 unit diesel CAT 4.4 95 Kw/440V/3
Generator Ph/60Hz

PUMPS
Fuel Oil : 1 x 118 m3/hr@ 60m head
Fresh Water : 1 x 120m3/hr@ 60m head
Drill Water : 1 x 120m3/hr@ 60m head
Ballast Water : 2 x 500m3/hr@ 45m head

ACCOMMODATION
14 x 1 Berth Cabins:14 Men
30 x 2 – Berths Cabins:60 Men
78 x 4 – Berths Cabin:312 Men
Total:386 Men
(some cabins has been converted as office and can be reinstated back into cabin to have total 402 berths)
All cabins fully air-conditioned, comply ILO 92, IMO Resolution A468 (XII)

RADIO AND NAVIGATION EQUIPMENT
MF/HF DSC Radio System: 1 x FURUNO FS-1570W
VHF Radio Telephone: 1 x FURUNO FM-8800S
Non-directional Radio Beacon: 1 x NAUTEL VR125S-125W
Inmarsat Fleet 77: 1 x FURUNO FELCOM-70 SAT-COM
VHF Marine Transceiver:1 x ICOM IC-M504
GMDSS VHF Radio: 3 x Mc MURDO R2
SART: 2 x Mc MURDO S4
EPIRB: 1 x Mc MURDO R5
Satellite Compass: 2 x FURUNO SC-50
Navtex Receiver: 1 x FURUNO NX-700
Marine Radar: 1 x FURUNO 1932 MK2
Weather Fax: 1 x FURUNO FAX-408
Wind Speed Indicator: 1 x RM YOUNG
Echo Sounder: 1 x FURUNO FE-700
