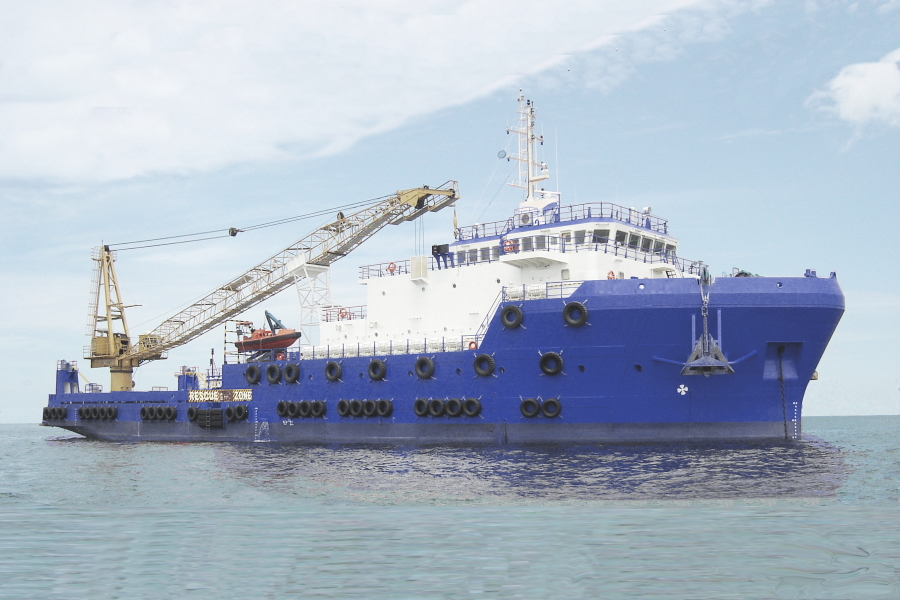

74M Accommodation Work Vessel for Sale

74M Accommodation Work Vessel for Sale

74M Accommodation Work Vessel for Sale

General Particular

74M Accommodation Work Vessel for Sale

Year Delivered :                   2004
Class :                                     ABS
Notation :                              ABS + A1 E+ AMS

ACCOMMODATION
Total:                                      200 P
1 Man Cabin x 4 : 4
2 Men Cabin x 12 : 24
4 Men Cabin x 43 : 172
Hospital Room :                   2 Bed
FULLY AIR-CONDITIONED

Dimensions

Length Overall :                     74 M
Breadth Moulded :                20.00 M
Depth Moulded :                    6.50 M
Summer Draft :                      5.00 M
Gross Tonnage :                     3350 T
Net Tonnage :                         1000 T
Deadweight :                           3040 Tons
Free Deck Space :                   520 m2
Deck Strength :                       5 Tons/m

ANCHOR MOORING SYSTEM
Type :                          Stockless Bower Anchor
Capacity :                    2 x 2460 kg
Chains :                       2 x 10 Shackles L, 46 mm Dia.
4 Point Mooring:      4 x 5.5 Tons Stevpris Anchor

DECK EQUIPMENT

Anchor Windlass and Mooring Winch :
Electro Hydraulic System, Windlass with 10 Tons Duty Pull @ 14 m/min.
Capstan :                                   2 x 6 Tons @ Electro. Hyd. Sys.
Mooring winch for 4 Point Mooring System:
4 Winches having drum capacity of 44 mm Dia. X 1000 M Wire.
Deck Crane : 32 M Boom Length, SWL 25 Tons @ BNWAS : 1 set
12 M radius, 5 Tons at max. radius.

DISCHARGE PUMPS CAPACITIES
Fuel Oil (Cargo) : 2 x 50 m3/hr @ 57 m head
Fresh Water (Cargo) : 1 x 60 m3/hr @ 45 m head

PROPULSION SYSTEM

Main Engine : 2 x 2000 BHP , Diesel engine @
(CAT) 1800 rpm c/w Reduction gearbox
Propeller : 2 x FPP, 2 m Dia. @ 4-bladed,
with Kort Nozzle
Steering Gear : 2 x Independent Electro. Hyd. Sys
Bow Thruster : 1 x 9 Tons, CPP (620 kW Engine)

PROPULSION PERFORMANCE

Maximum Speed : 13.5 Knots (approx.) @ 100% MCR
Economic Speed : 11.5 Knots (approx.) @ 85% MCR

NAVIGATION & COMMUNICATION E QUIPMENT

GPS : 1 unit
Gyro Compass : 1 unit
Magnetic Compass : 1 unit
Radar (ARPA) : 2 units (2 x X-Band)
AIS : 1 unit
Echo Sounder : 1 unit
Speed Log : 1 unit
Anemometer : 3 units
BNWAS : 1 set
Auto Pilot : 1 unit
SVDR : 1 set
CCTV : 1 set
Search Light : 2 units
GMDSS Radio A3 : 1 complete set
Navtex Receiver : 1 unit
Fleet Broadband : 1 set
Interior Com System : 1 set
PA System : 1
set Sound Power Phone : 1 set

SAFETY EQUIPMENT

Life rafts : 24 units
Fast Rescue Boat : 1 x 6 men c/w A Frame davit
Scrambling Net : 2 set
Remarks: Vessel’s Life Saving Equipment are in accordance with
SOLAS / LSA Code & Flag State requirements.

FIRE FIGHTING & ANTI POLLUTION EQUIPMENT

Pumps Capacity : 1 x 300 m3/hr @ 12 bar
Fire Monitor Capacity: 2 x 150 m3/hr @ 10 bar

Remarks: 1 x Fixed Fire-Fighting System (CO2) and 1 x Fixed Local
Application System (Water Mist) to Machinery Space of Cat A, Fire
Detection and Alarm System and Fire Fighting Equipment are in
accordance with SOLAS/ FFS Code & Flag State Requirements.

OTHER EQUIPMENT CAPACITIES

Oily Water Separator : 1 x 1m3/hr
Sewage Treatment : 1 unit, suitable for 200 men
Fresh Water Maker : 1 x 50 Tons/ day
