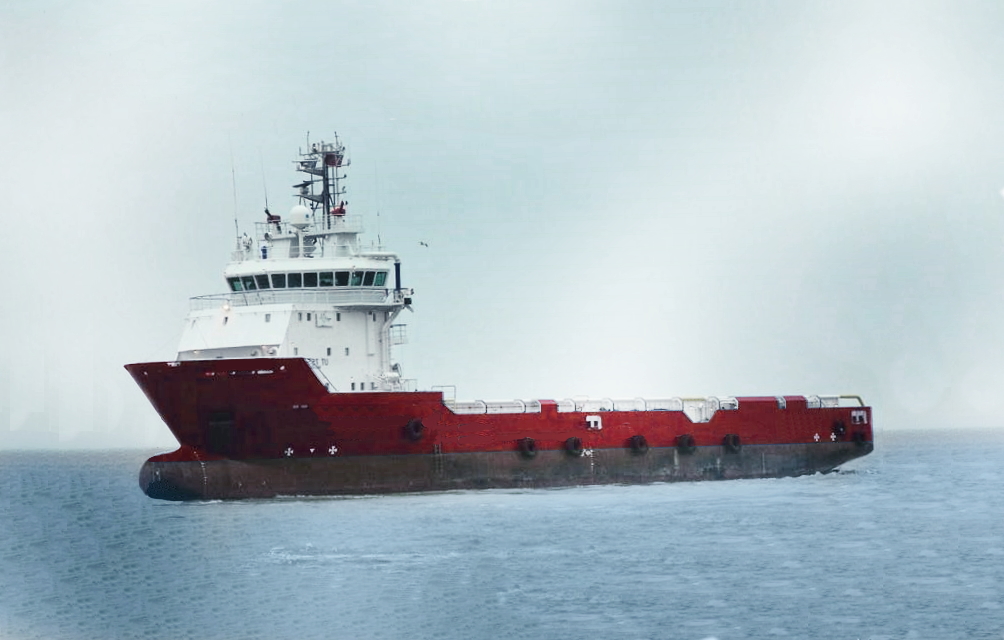

74m DP2 Offshore Supply Vessel for Sale
General Particular
74m DP2 Offshore Supply Vessel for Sale
Year Built 2008
Class GL
Flag LIBERIA
Dimension & Tonnage
Length OA 74m
Breadth 16m
Gross Tonnage 2150t
Lightship 1075t
DWT 3340t
DP System
DP Class DP2 ROLLS ROYCE
Propulsion
BHP 5310 BHP
Number of Engines 2 X MaK 6M25
Bow Thruster Number and BHP 2 X 790 BHP
Stern Thruster 2 x 790 BHP
74m DP2 Offshore Supply Vessel for Sale
Cargo Capacities
Clear Deck Space 680m²
Clear Deck Length and Breadth 51 M X 13.3 M
Deck Strength 5t / m²
Deck Cargo 1600t at VCG 1 m above deck
Fuel Oil m3 995m³
Potable Water 830m³
Drill Water m3 1348m³
Brine m3 397m³
Liquid Mud 980m³
Base Oil m3 211m³
Liquid Mud loaded and discharged via dedicated lines YES
Circulation system for Liquid Mud so as to prevent settling Circulation and agitator
Self cleaning Liquid Mud tanks NO
Dry Bulk 321m³
Number of Dry Bulk Tanks 5
Pumps / Discharge Capacity
Fuel Oil 200m³/ HR @9 BAR
Fresh Water 200m³/ HR @ 9 BAR
SWB/Drill Water 200m³/ HR @ 9 BAR
Liquid Mud 150m³/ HR @ 18 BAR
Dry bulk 64m³ / HR @5.6 BAR
Base Oil 150m³ / 9 BAR
Brine 75m³ / 18 BAR
Fire Fighting Equipment
FIFI CLASS 1
Foam/Detergent NO
Speed
Speed (max) Abt 13 knots
Speed (economical)/Consumption/day Abt 12 kts on abt 12.5 mts of MGO
Fuel MGO as per ISO 8217 DMX + DMA
Deck Equipment
Anchor Windlass 1 x 10t 9m/min
Anchors 2 x 2460 KG
Capstan 2 x 8 T @ 0-16 m/min
Tugger Winch (number/capacity/rating) 2 x 10t @ 0-16m/min
Crane 1 x 3t @ 16m
