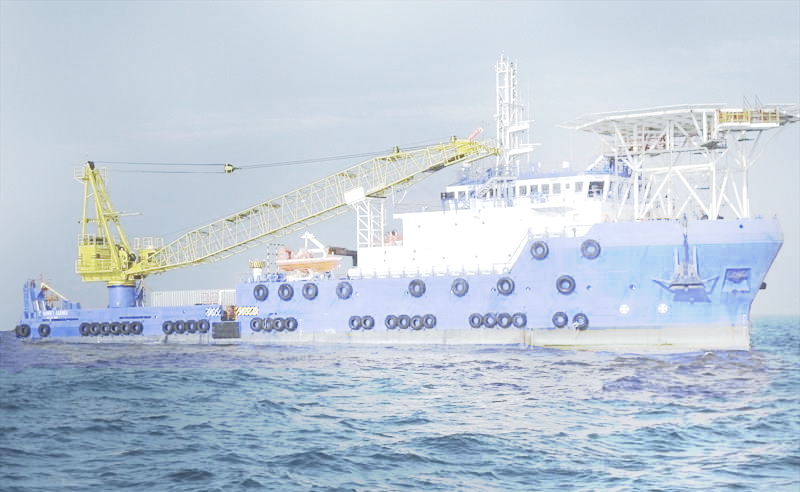

75m DP2 Accommodation Workboat for Sale

75m DP2 Accommodation Workboat for Sale

75m DP2 Accommodation Workboat for Sale

General Particular

75m DP2 Accommodation Workboat for Sale

Year Built 2009
Classification American Bureau Of Shipping (ABS + A1+AMS+DPS-2+ )

Dimensions

Length O.A.                               75.00 M
Breadth Mould                         20.00 M
Depth Mould                            6.50 M
Summer Draft                          4.988 M
GRT                                            3275 Tons (approx.)
NRT                                            980 Tons (approx.)
Free Deck Space                       480 m² (approx)
Performance  speed (Designed)     13 Knots (approx) @ 100% MCR

TANK CAPACITY

SWB                                                  252 m3 Approx
Fresh Water (Non-potable)         650 m3 Approx.
Fresh Water (Potable)                  333 m3 Approx.
Drill Water                                      120 m3 Approx.
Fuel Oil                                            485 m3 Approx.
Grey Water                                      15 m3 Approx.
LO Storage                                       10.3 m3 Approx.
Bilge Holding                                  15 m3 Approx.
Dirty Oil                                           15 m3 Approx.
Sewage Holding                              26 m3 Approx.
Hydraulic Oil                                   20 m3 Approx

ACCOMMODATION

Cabin 4 x 1 man
8 x 2 men
45 x 4 men
Total 200 men

NAVIGATIONAL AIDS
DP System                                        DPS-2
Navtex receiver                               1 unit
Radar(96nm range)                       2 radars
Echo Sounder                                  1 unit
Autopilot                                          1 unit
Gyro Compass                                 3 unit
Magnetic Compass                         1 unit
GPS Navigator                                 1 unit
SART                                                 2 unit
AIS                                                     1 unit
Speed Log                                         1 unit
VDR                                                   1 unit

MACHINERY & AUXILLARY MACHINERY

Main Engines                                  2 x 3000 PS @750rpm, Niigata-Diesel Engine
Main Propulsion                             2 x CPP with 360o Steerable, Z-Drive, with Kort Nozzle
Retractable Thrusters                    1 x FPP-Type Azimuth Thruster in Kort Nozzle (Motor Driven @705kW)
Bow thrusters                                  1 x CPP-Type Tunnel Thruster (Motor Driven @ 735kW)
Generating Sets                               3 x 590 KW, 440/3/60, Caterpillar
Emergency Generator                    1 x 99 KW, 440/3/60, Caterpillar
Shaft Alternator                               2 x 1250KW, 440/3/60, Stamford

SAFETY EQUIPMENTS

Comply to SOLAS regulations includes engine room, machine space and accommodation area.

FIRE FIGHTING EQUIPMENT

External 1 x300 m3/hr fire pump
2 x 150 m3/hr fire monitors
Internal Accommodation cabins fitted with heat/ smoke fire detector & sprinkler system & complied to SOLAS

DECK MACHINERY AND FITTINGS

Main Pedestal Crane
API 2C, ABS certified
Boom Length 41.2 meter Lattice boom type
Capacity (Main Hoist SWL) 40 tons @ 18.8 meter radius
Provision Crane Telescopic Boom Type
Capacity 3 tons @ 18 meter

ANCHORING SYSTEM

Anchor Windlass 1 x Anchor Windlass @ 46mm dia. Chain size
Duty Pull 10 Tons @ 14m/min approx
Anchors 2 x 2640 kg stockless anchors, 46mm dia. chain,
4 points mooring System 4 x single drum mooring winches; Min. 44mm dia x 1000m Wire Rope; Flipper Delta anchor

OTHER EQUIPMENT

2 x Water Makers, 34 m/t per day capacity, Reverse Osmosis System
Sewage Treatment plant                                         x 1
F.O. purifier                                                               x 1
Fast Rescue Craft c/w A-frame type davit           x 1
L.O. purifier                                                               x 1
Garbage Compactor                                                 x 1
Oily bilge water separator                                       x 1
