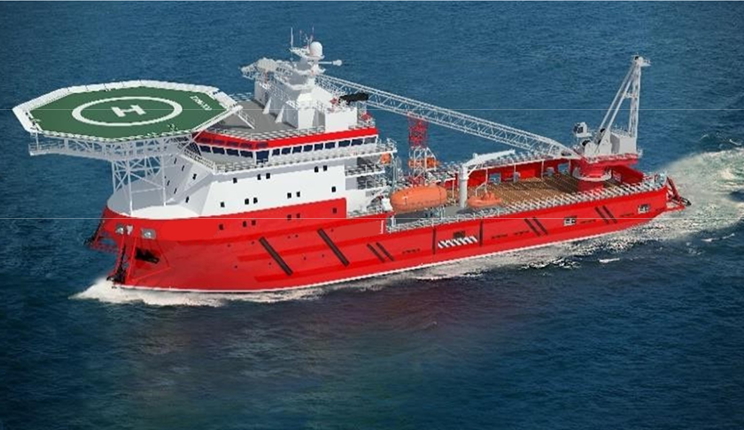

78M DP2 MAINTENANCE WORK VESSEL FOR SALE

78M DP2 MAINTENANCE WORK VESSEL FOR SALE

78M DP2 MAINTENANCE WORK VESSEL FOR SALE

General Paricular:

Class ABS
Notation ABS + A1 (E) Offshore support Vessel, (FFV 1), SPS, + AMS, DPS-2, UWILD.
Navigation Areas Unrestricted
Flag TBA

Dimensions & Capacities
Length O.A. 78.0 M
Beam MLD. 20.0 M
Depth MLD. 8.00 M
Design Draft 6.00 M
DWT 3000T
Fuel Oil Tank 1300 M3
Fresh Water Tank 1000 M3
Drill/Ballast Water 2000 M3
Cargo Deck Area 850 M2
Helideck Area 339.8 M2
Speed 11.5 Knot

Machinery & Propulsion Unit
Main Engine 2206KW @800rpm
Quantity 2 sets
Maker Niigata 6L28AHX
Propeller Niigata ZP-41 D2700mm x220rpm
Quantity 2 sets
Bow Thruster 11.7Ton CPP type
Quantity 2 sets
Maker KAWASAKI KT-88B3

Machinery & Others
Marine Gensets 730KW
Quantity 2 sets
Maker Caterpillar USA
Model CAT C32
Shaft Generator 1300KW
Quantity 2 sets
Maker LeroySomer
Emergency Gensets 150KW, Commins
MSB TERASAKI

Life Saving In compliance with SOLAS Life Saving Requirement
Rescue Boat 2 x 6 men
Life Boat 2 x 65 men

Deck Equipment
Tuggers: 2 x 10 T @12m/min, IOE
Capstan: 2 x 5 T @15m/min , IOE
Deck Crane: 64 Ton @13M (5 Ton @53M), IEO
Deck Crane: 3 Ton SWL @ 12M, IEO

External Fire Fighting
FIFI System: Class 1, FFS
FIFI Pump: 2x FFS SFP300 x 400
FIFI Water Monitor: FFS1200LB
FIFI Foam Monitor: FS1200/300LB

Complement

6 x Single Cabins
61 x Twin Cabins
Total Accommodation: 128 men
Hospital: 1 man

Others
Roll Reduction Monitoring System
