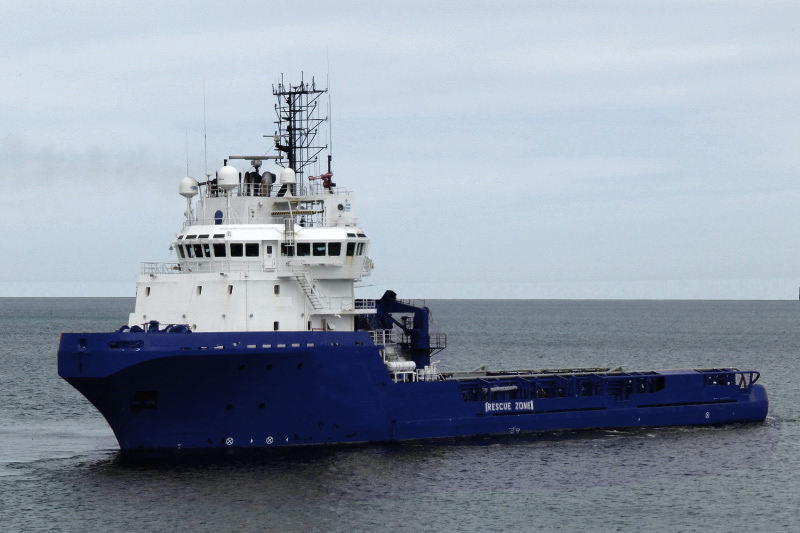

79M FIFI-1 DPII Platform Supply Vessel for Sale

General Particular

Registration
Class ABS +A1, Offshore Support Vessel, (E)+AMS, +ACCU, ENVIRO, HAB(WB),
MLC-ACCOM, +DPS – 2, UWILD, Fire– Fighting Vessel Class 1,
OSR – C1, SPS Code 2008

Dimensinos
LOA 80m
Length between p.p. 73m
Breadth moulded 21m
Depth moulded 7.2m
Draft designed 5.6m
Deadweight [email protected]

Machinery

Main engine 2 x 2400kW / 750 rpm, MAK,
Propulsion Berg Azimuth CPP
Bow thruster Berg 2 x 12T , KT-88B3 ,Tunnel
Steering gear Berg Azimuth CPP
Main generator CAT 3 x 550KW
Shaft generator 2x2100KW gearbox PTO
Emergency generator CAT C9 238KW
Rudder Berg Azimuth CPP
Dp Konsberg DP2

Capacity
Fuel oil 1330m3
Potable water 550m3
DW/WB 2255m3
Bulk cement 283m3
RO 620m3
Detergent 20m3
Mud/Brine 950m3
Clear deck area/Covered 900m2
Deck cargo ABT.1500 ton
Deck strength 5t/ m2
Discharge rate
General/bilge/ballast pump 2x 100m3/h@6bar
Bilge pump 1x 60m3/[email protected]
Potable water 1x 150m3/[email protected]
Mud pump 1x 100m3/h@18bar
Fuel oil cargo pump 1x 150m3/[email protected]
Drill water pump 1x 150m3/[email protected]
Fresh water cargo pump 1x 150m3/[email protected]
Cement bulk compressor 11.88m3/h

Performance
Speed MAX.ABT.13knots
Endurance 50-6-days of 24 hrs
Deck equipment
Anchor windlass 1x15t at 15m/min. for 38mm chain
Capstan 2x8t@15m/min
Tugger winch 2x10t@15m/min
Deck crane 4.0t SWL@19m

Navigation and communication
GMDSS GMDSS A3
Inmarsat C FURUNO FELCOM18x2
MF/HF FURUNO FS-2575
Radar FAR-2117/FAR-2137S
DGPS FURUNO GP150
AIS FURUNO FA150
Autopilot SIMRAD AP70
Navtex FURUNO NX700A
Gyro Anschuts STD22x3
Magnetic compass SAURA SR165
Echo sounder FURUNO FE700
VHF radio FURUNO FM8900Sx2
Portable VHF MCMURDO R5x4
SART MCMURDO S4x2
Speed log FURUNO DS-60
Weather fax FURUNO FAX408
ECDIS FURUNO FMD3200
EPIRB MCNURDO E5
VDR Consilium

Life saving equipment
Life rafts 2x25men+2x15men
jacket 52 sets
buoy 9 sets
MOB light smoke signal 2 sets
Immersion suit 52 units
Pyrotechnic 12 units parachute distress signal, 6 units red handflare
2 units smoke signal
Rescue boat FRC,9p,25knots with 3p for 4hours
First aid kit 1 set
EEBD 7 units
Fire-fighting equipment
External
FiFi system FFV 1
FiFi pump 2x1830m3/h
Monitor 2x1200m3/h
Fireman’s outfit 6 sets
Internal
Emergency fire pump 1x45m3/h@60M
BA recharging compressor 215Lt/Min
CO2 system 30pcs/68L

Accommodation
Crew 12
S.P. 42
Total 54
