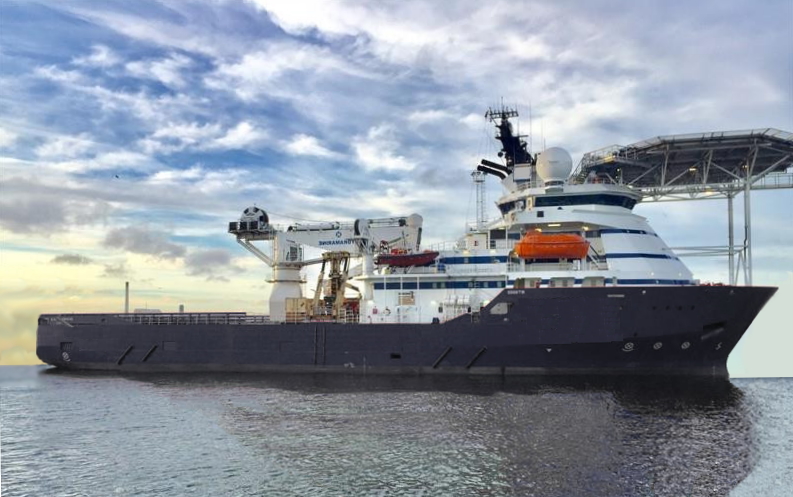

84M DP2 IRM Survey ROV Vessel for Sale
Technical Specifications
General
Class DNV +1A1, Clean, DK(+), DYNPOS-AUTR, E0 HELDK SF
Year Built 2001
Tonnage Gross: 4,456 t; Net: 1,336 t
Dimensions
Length LOA: 83.85 m;
LBP: 76.8 m
Breadth 19.7 m
Draft 6.2 m
Accommodation
Total complement 80 persons
Cabins 26 single, 27 double
Hospital 1 berth + treatment table
Offices/workspaces Online survey room
Offline survey room
2 x client offices
Conference room
OVM office
Recreation 3 x recreation rooms c/w satellite
TV & video
Sky lobby/cinema
Messroom
Gymnasium
Equipment
Safety Equipment
Lifeboats 2 x 40 person Harding type MCB24
Liferafts 8 x 20 person Viking D625 inflateable
MOB boat Springer MP-741 FRC
Machinery & Performance
Main engine 4 x 2,530 kW CAT – Total 10,120 kW
Main generator ABB AMG 630 M8L 2,425 kW each
Aux engines 1 x CAT 3408 – 397 kW
Bow thrusters 2 x Kamewa TT2200 1,000 kW tunnel
1 x Aquamaster UL1 401FP 1,000 kW azimuth
Stern thrusters 2 x Aquamaster Contaz 15 2,200 kW azimuth
Speed Full speed: 15 knots; Service: 11 knots
Endurance 50+ days
Deck Machinery
Deck area 632m²
loading (main) 5 t/m²
crane Hydramarine 50 t / 15 m; 25 t / 30 m
Main lift: 3,060 m x Ø 56 mm
Whip: 10 t / 29.5 m; 540 m x 28 mm
Auxiliary crane 10 t, 400 m x Ø 28 mm
Moon pool 5.4 m x 5.5 m, enclosed in large hanger
Mezzanine decks 3 x removable decks, 4.7 m x 15.8 m
Capacities
Fresh water 850 m³
Water maker 25 t/day
Ballast water 1,487 m³
Fuel oil 1,450 m³
Control and Navigation
DP system Simrad SDP-21
DP reference systems Dual Seastar DGPS; 2 x HiPAP 500 and
Seapath 200, Fanbeam®
Communication
Immarsat B Furuno Felcom 250/500
Immarsat C 2 x SAILOR® TT-3606E
Navtex Furuno NX-700
Air VHF 2 x ICOM-IC A24E & IC A6E
Euro Air VHF2 x ICON IC-A110
Emerg. phone 2 x Vingtor VSP 211
Intercom phone 2 x Vingtor VMP-430
Portable VHF 3 x Jotron Tron TR20
Portable UHF 6 x Motorola GP340
Ku-band Telenor Norsat Sealink
Dual antenna 64 kb voice & data
ROV
Work class ROV (WROV) Systems
Number and type 2 x FCV 3000 150 HP ROV systems
Deployment locations 1 x moon pool launch, 1 x A-frame launch
TMS 9.3 t SWL, 600 m tether capacity
System depth rating 3,000 msw
Lift umbilical winch 1 x active heave comp. ( 2.0 m/s )
High speed (0-100 m/min) 15 t
Line pull , 4,000 m capacity, 3,500 m fitted
Vehicle dimensions 3 m x 1.7 m x 1.7 m
Vehicle power rating 150 HP
Inspection ROV (OBSROV) System
Number and type 2 x Seaeye Lynx
System depth rating 1,500 msw
TMS Seaeye Type 8, side entry
extendable height, 200 m tether capacity
LARS Integrated crane, winch & HPU on
4.8 m x 2.8 m skid, 3 m outreach @ 3G
