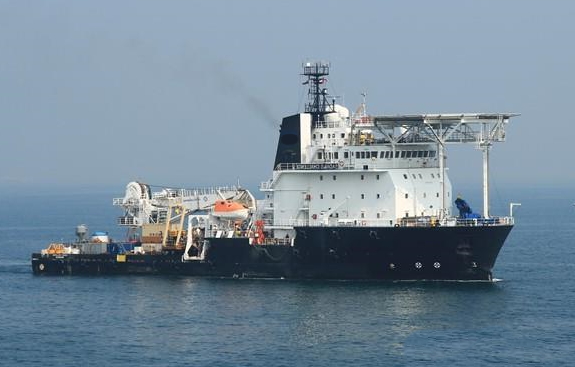

86M DP2 Diving Support Vessel For Sale – Built-In Sat System

86M DP2 Diving Support Vessel For Sale - Built-In Sat System

86M DP2 Diving Support Vessel For Sale – Built-In Sat System

GENERAL PARTICULAR

YEAR OF BUILD:                 2009
CLASSIFICATION:             AMERICAN BUREAU OF SHIPPING
NOTATION:                        ABS +A1, CIRCLE E, +AMS, +DPS2

PRINCIPAL DIMENSIONS
LENGTH (LOA)                   85.74M
LENGTH (LBP)                    78.00M
BREADTH MLD                   18.00M
DEPTH MLD                        8.00M
DESIGN DRAFT                  5.75M

DEADWEIGHT AND CAPACITIES
DEADWEIGHT 2054 T
CAPACITIES:
FUEL OIL TANKS                                994 CU.M
FRESH WATER TANKS                   480 CU.M
BALLAST WATER TANKS               1311 CU.M
DECK CARGO (MAX)                        800 T
FRESH WATER GENERATION       20 TONNES/DAY
GROSS TONNAGE            4098
NET TONNAGE                  1229
SERVICE SPEED: 14 KNOTS
FUEL CONSUMPTION:   16.5 TONNES/DAY
ECONOMIC SPEED:          10 KNOTS
FUEL CONSUMPTION:   8.5 TONNES/DAY
FUEL CONSUMPTION (DP): 10-13 TONNES/DAY
FUEL CONSUMPTION PORT: 2.5 TONNES/DAY
DECK CLEAR AREA 510 M²
DECK STRENGTH 5T/M²



DECK MACHINERY

2 X ELECTRO-HYDRAULIC WINDLASS EACH WITH ONE CABLE LIFTER AND ONE WARPING DRUM
2 X ELECTRO-HYDRAULIC CAPSTANS EACH 5 TONNES PULL
1 X MOONPOOL DOOR WINCH (AVAILABLE ON REQUEST)
1 X BEACON DEPLOYMENT WINCH AND DAVIT
1 X STORES CRANE AT MAIN DECK, DUTY 12.5 TONNES AT 13.4 METRES
1 X STORES CRANE AT FORECASTLE DECK, DUTY 7 TONNES AT 8 METRES

DECK CRANE AHC 100T



PROPULSION AND MACHINERY

MAIN GENERATORS:
4 X WARTSILA 8L26 MEDIUM SPEED IN LINE MARINE DIESEL ENGINES EACH RATED AT 2600 KW FITTED WITH MARINE ALTERNATORS AT 2495 KW, 690 V, 3 PHASE, 60 Hz ARRANGED IN PARALLEL
2 X WARTSILA/LIPS STEERABLE THRUSTERS RATED AT 2450 KW
AZIMUTH UNITS:
TUNNEL THRUSTERS:      2 X WARTSILA/LIPS TUNNEL THRUSTERS EACH RATED AT 990 KW AZIMUTH UNIT FORWARD:                1 X WARTSILA/LIPS STEERABLE THRUSTER RATED AT 1000 KW
1 X DIESEL DRIVEN MARINE ALTERNATOR RATED AT 565 KW
HARBOUR GENERATOR:
EMERGENCY GENERATOR:           1 X DIESEL DRIVEN MARINE ALTERNATOR RATED AT 450 KW



DIVING SYSTEMS

THE AIR DIVE SYSTEM COMPRISES THE FOLLOWING BELOW DECK MOUNTED EQUIPMENT: 2 X HP AIR COMPRESSORS (1- ELECTRIC AND 1- DIESEL DRIVEN)
2 X LP AIR COMPRESSORS (1-ELECTRIC AND 1- DIESEL DRIVEN)
1              X HP BOTTLE BANK
2              X LP AIR RECEIVERS
1 X WELD GENERATOR AND TRANSFORMER
1 X TOOL AIR COMPRESSOR AND AIR RECEIVER
PLUS 1 X CONTROL CONTAINER WITH DDC CHAMBER AND 1 X DIVER LAUNCH AND RECOVERY SYSTEM MOUNTED ON DECK.

THE SATURATION DIVE SYSTEM COMPRISES THE FOLLOWING EQUIPMENT: 2 X TWIN LOCK LIVING CHAMBERS

1 X HYPERBARIC RESCUE CHAMBER
1 X 3 MAN BELL
1 X LAUNCH AND RECOVERY SYSTEM
2 X DIVE AND SAT CONTROL STATIONS
2 X EQUIPMENT SUPPORT CONTAINERS

ALL NECESSARY LIFE SUPPORT SYSTEMS, SAFETY AND LOOSE EQUIPMENT ARE PROVIDED. MAINS ELECTRICAL AND EMERGENCY SUPPLY IS PROVIDED FROM THE VESSELS SYSTEMS. GAS STORAGE IS PROVIDED BELOW DECK IN STORAGE KELLY`S.

ELECTRICAL SYSTEM
690 VOLT, 3 PH, 60 Hz- NORMAL
440 VOLT, 3 PH, 60 Hz- NORMAL + EMERGENCY
220 VOLT, 1 PH, 60 Hz- NORMAL
110 VOLT, 1 PH, 60 Hz- NORMAL + EMERGENCY

THE FOLLOWING ARE ARRANGED ON THE MAIN DECK FOR PROJECT USE: 300 KW, 3 PH, 690 VOLT DECK SUPPLY VIA CIRCUIT BREAKER

400 KW, 3 PH, 440 VOLT DECK SUPPLY VIA CIRCUIT BREAKER
POWER OUTLETS 2 X 440 VOLT 125 AMP
4 X 440 VOLT 63 AMP
2 X 220 VOLT 32 AMP
4 X 220 VOLT 16 AMP
2 X 110 VOLT 32 AMP
4 X 110 VOLT 16 AMP

ACCOMMODATION

TOTAL 98 P

ELECTRONICS
3 X RADARS
2 X ELECTRONIC CHART DISPLAYS
2 X ECHO SOUNDER
1 X AUTO PILOT LINKED TO 2 GYRO COMPASSES
1 X FBB INTERFACED TO THE DP SYSTEM
2 X INMARSAT C SATCOM
1  X NAVTEX
2 X VHF WITH DSC
1 X SSB RADIO WITH DSC
2 X SART
1 X EPIRB
6 X PORTABLE VHF`S
1 X C-BAND VSAT FOR BROADBAND INTERNET
1 X PUBLIC ADDRESS SYSTEM AND INTERCOM
1 X SOUND POWER TELEPHONE SYSTEM
1 X AUTOMATIC IDENTIFICATION SYSTEM
1 X VHF DIRECTION FINDER
1 X VDR
1 X NAVIGATION GPS
1 X HANDHELD GPS
1 X INMARSAT MINI M SATCOM (ACTIVATION ON REQUEST)
1 X SOUND DIRECTION FINDER
