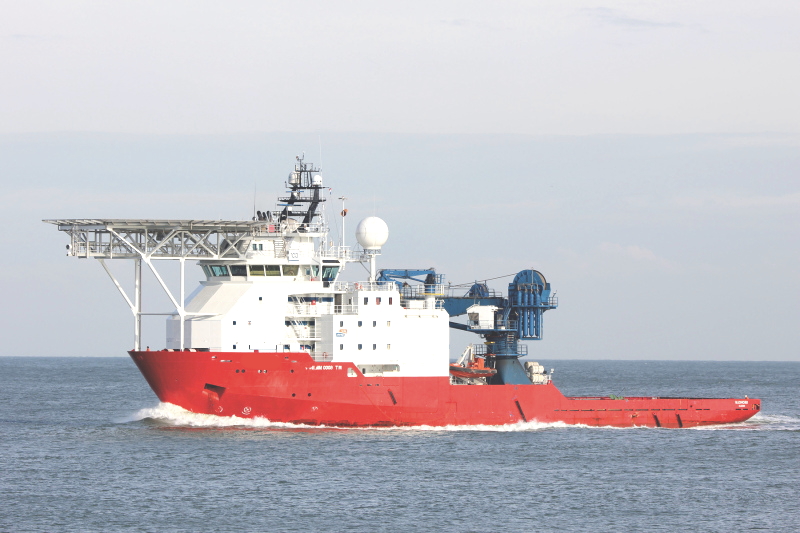

DP2 Multipurpose Support Vessel for Sale
Technical Details
GENERAL INFORMATION
Class: DNV 1A1,SF,EO, DK+,
DYNPOS-AUTR, HELDKSH,
CLEAN, COMF-V(3)
Year Built: 2006
DIMENSIONS
LOA: 85.65 m
LBP: 77.76 m
Beam: 19.7 m
Draught (SSW): 6.1 m
Gross tonnage: 4,454 t
Net tonnage: 1,336 t
TANK CAPACITIES
Fuel oil: 1,330 m³
Ballast water: 2,480 m³
Fresh water: 750 m³
(producing 35 m³/day)
SPEED
Maximum: 15 knots
Service: 12 knots
ACCOMMODATIONS
70 persons
20 single cabins / 25 doubles
MAIN ENGINES
Main Engines: (4) Wartsila (4 x 1,530 kW)
Generators: (4) Siemens (4 x 1,460 kW)
AUX. ENGINES
Aux. Engines: (2) Caterpillar 3512B (1,430 kW)
Generators: (2) Leroy Somner (1,700 kVA)
THRUSTERS
Stern thrusters and
main propulsion::
(2) 2,200 kW CRP Aquamaster
Contaz (azimuth)
Bow thrusters: (1) 883 kW CP Kamewa, tunnel
(1) 883 kW Aquamaster FP,
azimuth
(1) 883 kW Ulstein VROS
(azimuth)
MAIN CRANE
1 National Oilwell
knuckle boom crane:
76 t @ 12 m – 500 m AHC
65 t @ 12 m – 2,000 m AHC
90 t @ 12 m – 500 CT
65 t @ 12 m – 2,000 m CT
With auxiliary crane: 10 t @ 30 m – 2,000m AHC
Crane fitted with active heave compensation
Certified for ship to ship transfer, max. radius 30 m
DECK EQUIPMENT
2 Windlass (10 t) Rolls Royce Rauma Brattvaag MW
100E
2 mooring winches (10 t) Rolls Royce Rauma
Brattvaag MW 100E
1 Hydramarine knuckle jib crane
(5 t / 10 m)
1 Hydramarine deck crane (3 t / 10 m)
2 tugger winches (10 t) Rolls Royce Rauma Brattvaag
MW 100E
NAVIGATION & INSTRUMENTATION
Furuno:
ARPA Radars x 2
FE 700 Echo Sounder x 1
Telechart Ecdis x 2
Doppler Speed Log DS-80 x 1
GP 90 (GPS) x 1
Anschutz
Pilot Star (autopilot) x 1
Standard 22 Gyroscopes x 3
COMMUNICATIONS
System in accordance with SOLAS requirements for
GMDSS-A3
1 Nera Fleet 77 (Voice/Fax/Data)
1 Schlumberger Rignet (V-SAT/C-band) optional
2 GSM mobile telephones
DYNAMIC POSITIONING SYSTEM (DP)
(1) Kongsberg SDP 22
(1) Fanbeam
(2) Kongsberg HiPAP 500 (dual)
(2) Seatex DGPS
(1) Seapath DGPS
HELICOPTER DECK
21 m x 21 m (Sikorsky S-92-A)
LIFE-SAVING EQUIPMENT
6 life rafts, capacity: 35 persons each
1 Maritime Springer FRC MP-741
1 Davit HL9DP-A MOB 3500 TTS
