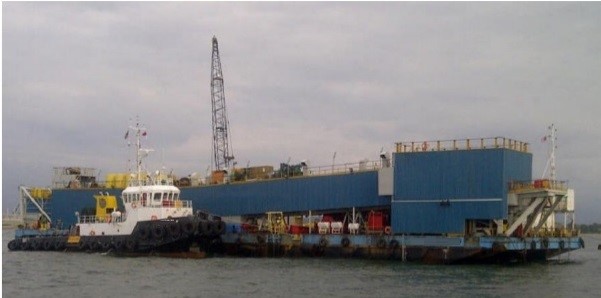

Shallow Water Pipe Lay Barge for sale
Shallow Water Pipe Lay Barge for sale
Principal Particulars
Flag. : Malaysia
Converted : 2011
Class. : BV
Length O.A. : 75.00 m
Breadth : 25.10 m
Depth : 4.80 m
Min Working Draft : 2.2 m
Accommodation : 50 Pax
Fuel Tank : 200 mtons
Fresh Water : 2 X 400mtons
Machinery
Main Genset : 2 X 1000KVA
Emergency Genset : 2 X 400KVA
Water Maker : 12 mtons/Day
Mooring : 8 points Mooring
Pipe Lay Equipment
– Feeding Station (Longitudinal rollers and conveyor)
– Fabrication rack for 7 length line pipe
– 3 welding stations before tensioner
– Gantry overhead hoist with 15MT capacity
– X ray/ repair station (before tensioner)
– Rectifier : 2 units every station
– Stinger : 20.1m long x 1.53m
– Davits : 6 units x 35 tons capacity
– Tensioner : 60MT capacity (SAS pipelay system)
SAFETY EQUIPMENT
1 unit clinic room c/w hospital bed
300 gpm main fire pump
1 unit diesel driven emergency
fire pump
7 units Fire Hoses
27 units Fire Extinguishers
CO2 system in Galley
18 set Life Buoys
8 units 25 men life raft
MACHINERY
2 units of 50KVA generators
for accommodations
2 units of 600 KVA Generators
or Winching
Automatic Fresh water pump
Diesel Day Tank with
capacity 15 tonnes
ACCOMATIONS FACILITIES
ACCOMATIONS FACILITIES DESIGNED FOR 180 PAX WHICH COMPRISES OF:
DECK LEVEL – 20 pax
GALLEY AND MESSROOM
Dining tables and sitting benches
Water coolers, refrigerators, freezer,
chiller and public address system.
Pest control equipment
Fire alarm system
OFFICE
2 Room for Superintendent and
Operation unit c/w air conditioning
Unit.
MEDICAL ROOM
With minimum medical facilities
requirement for 180 pax
Installed with Navigation aids and fire
alarm system control panel
1st LEVEL – 80 pax
ROOM FOR GALLEY PERSONNEL
16 Nos of Comfortable room for 10
pax with Air Conditioning unit
Smoke Detector for Fire Alarm
Mnitoring
1 unit of Air Conditioning unit
Each Bed have own-control fitting for
reading
Air tight window and door
TOILET/SHOWER
16 units x 20’ shower
6 unit of Flushed Type Toilet
6units sea water pump for toilet
flushing
